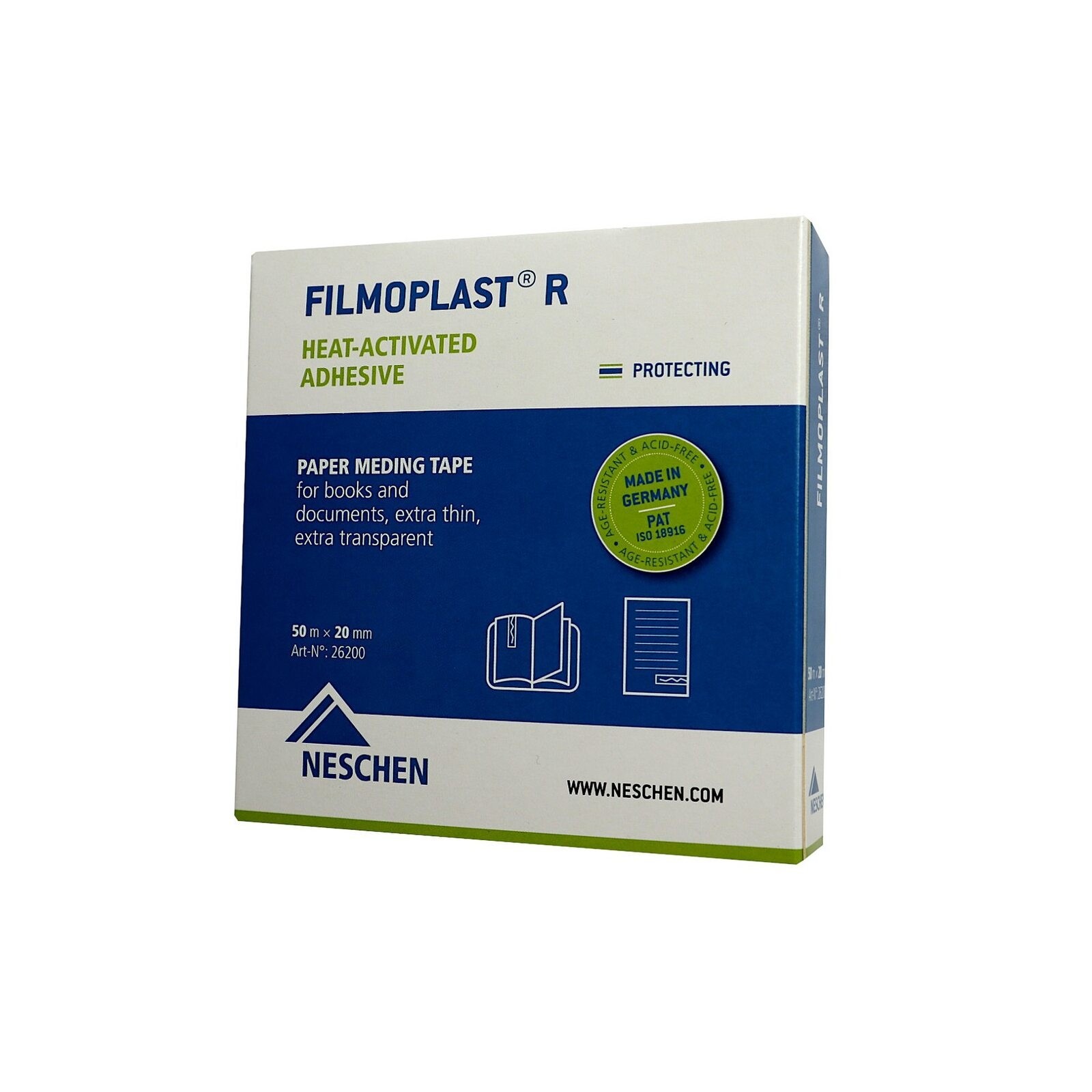

Filmoplast® R Japanpapier mit hitzeaktivierbaren Kleber

General information filmoplast® R

- ultra-thin, transparent, technical Japanese-paper
- the paper neither contains lignin nor hemi-cellulose, but therefore a high percentage of alpha-cellulose
- coated on one side with a heat-activated, plasticizer-free acrylate copolymer

Areas of application

- for wood pulp board, manufacture approx from mid-19th century
- embedding of documents, newspapers or other archive documents with using a HSM Hot-Sealing-Machine
- repair of torn pages or patching missing sections (holes e.g.) in the document using the hot iron RT

Features / Product Properties

- 8.5 g/m2 light, transparent, technical Japanese paper
- coated with heatactivated acrylic-acid ester copolymer
- the paper is free of lignin and hemicellulose, with a high percentage of alpha cellulose
- the adhesive contains no softeners, is ageing-resistant, colourless and does not yellow
- Magnesium carbonate in the adhesive neutralises acids that may arise and migrate into the adhesive layer when paper fibres in old papers degrade
- the adhesive provides good adhesion with high bending stiffness, even repeated bending will not loosen the seal
- the sealing temperature must be over 100°C
- filmoplast R can be removed in water bath, with alcohol or heat (recommended).
- Attention! Please refer to the processing instructions in our technical data sheet.


Processing & Handling

- recommended temperature: > 100°C (approx. 212°F)
- possibly leads to bleeding of plasticized colours, own tests are necessary or will be issued on demand
- removable with acetone, alcohol or heat (recommended method)
- prior to detachment trials with acetone and alcohol, sufficient resistance of colours and inks against the solvents is to be tested
- prior to detachment trials with heat, reactivation (melting) by sufficient heating must be granted to ensure detachment without mechanical damage
- ALWAYS store the rolls together with the label respectively batch number! Without batch number or production number, no requests or claims can be accepted!

Technical Data

Carrier

Film type: Specialpaper, white, transparent
Thickness [μm] approx.: 1.4 mil
Weight [g/m2] 8 , 5 ± 1
Tensile strength wet[N/15mm] lengthwise: > 4,0 crosswise: > 2,3 DIN EN ISO 1924-2
Tear resistance, wet[N/mm2] lengthwise: > 1,5
whiteness [%] > 60

Adhesive

Adhesive type: polyacrylate sealing-dispersion
pH-value >7,5

Storage conditions 18° - 25°C/ 64 - 77°F; 40 bis 65%  relative humidity
Shelf Life [Years] 4
indoor conditions for processing 5 - 40°C/ 41- 104°F
Temperature stability/ blocking tendency: no blocking
Storage of some samples for 3 days ( sealing against paperback) at 50°C/ 122°F
pH-Evolution in the product (referring to PTS-Method) fresh product pH 8,7 aged product pH 7,8
humid climate stability: The defined purpose of this product excludes its application in extremly humid surroundings
