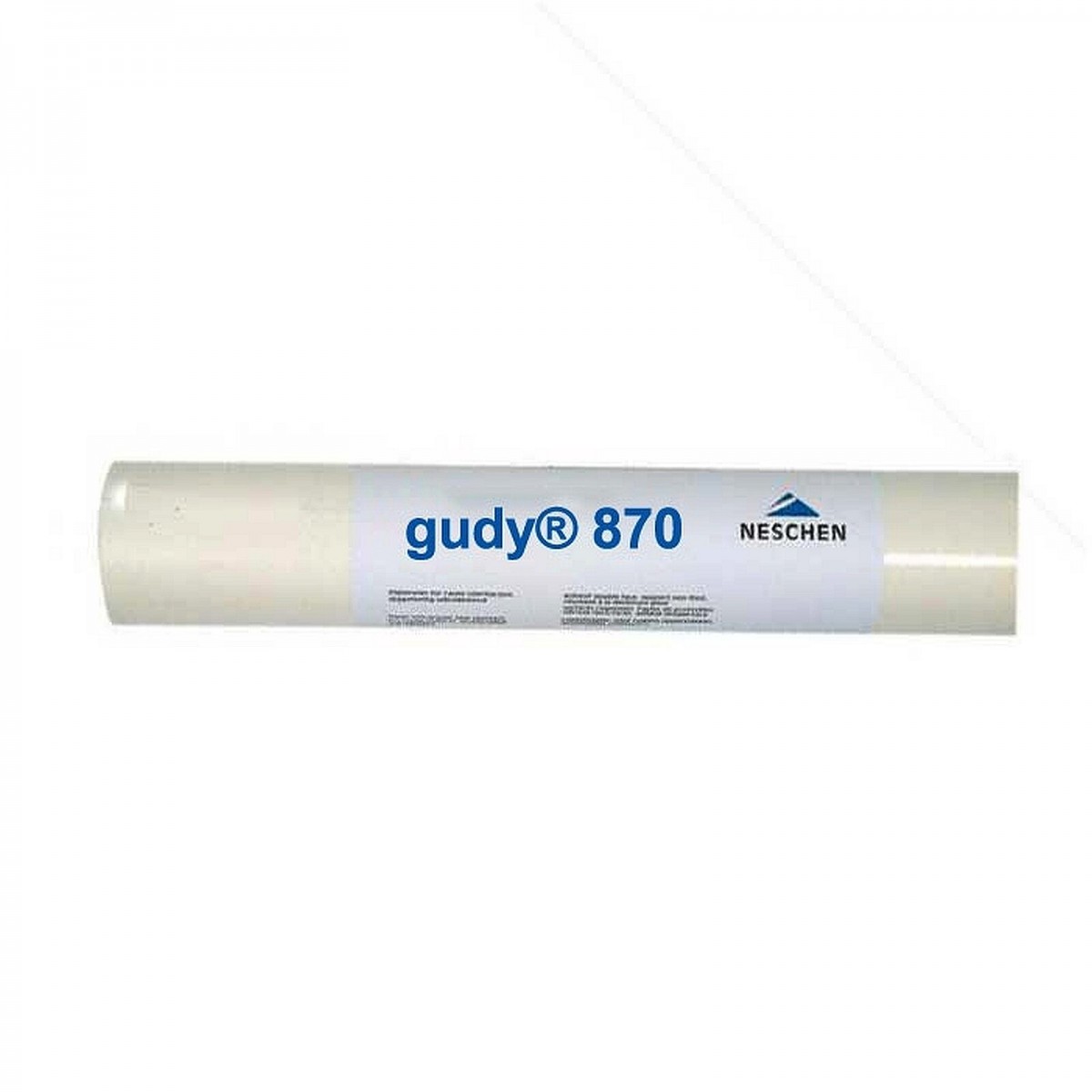

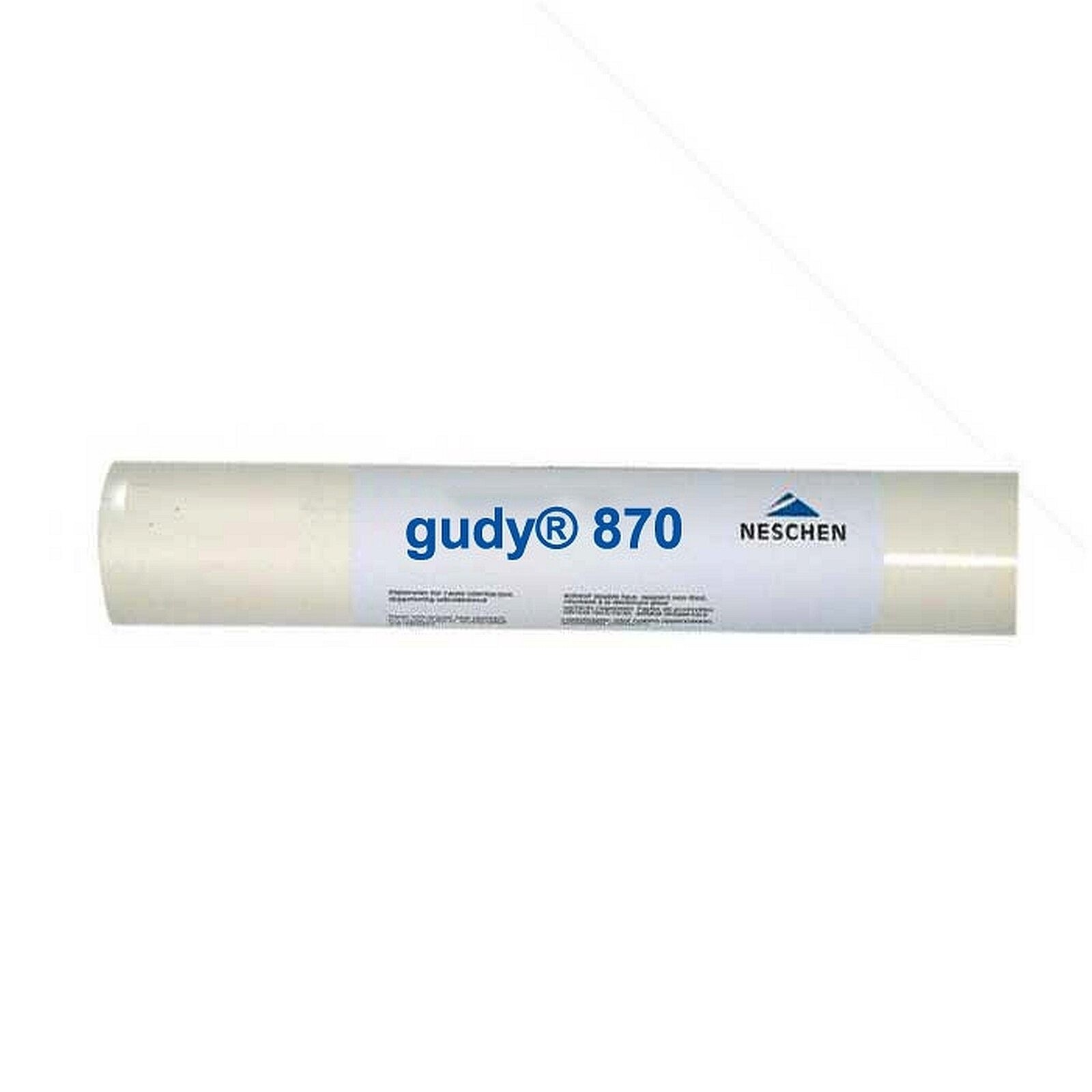

Doppelseitige Klebefolie Gudy 870 40 g/m2 permanent selbstklebend

General information

- wafer- thin, carrier free, transparent permanent adhesive film
- coated with a solvent-free, age-resistant- and permanently elastic acrylate adhesive, which does not brittle or bleed.

Areas of application

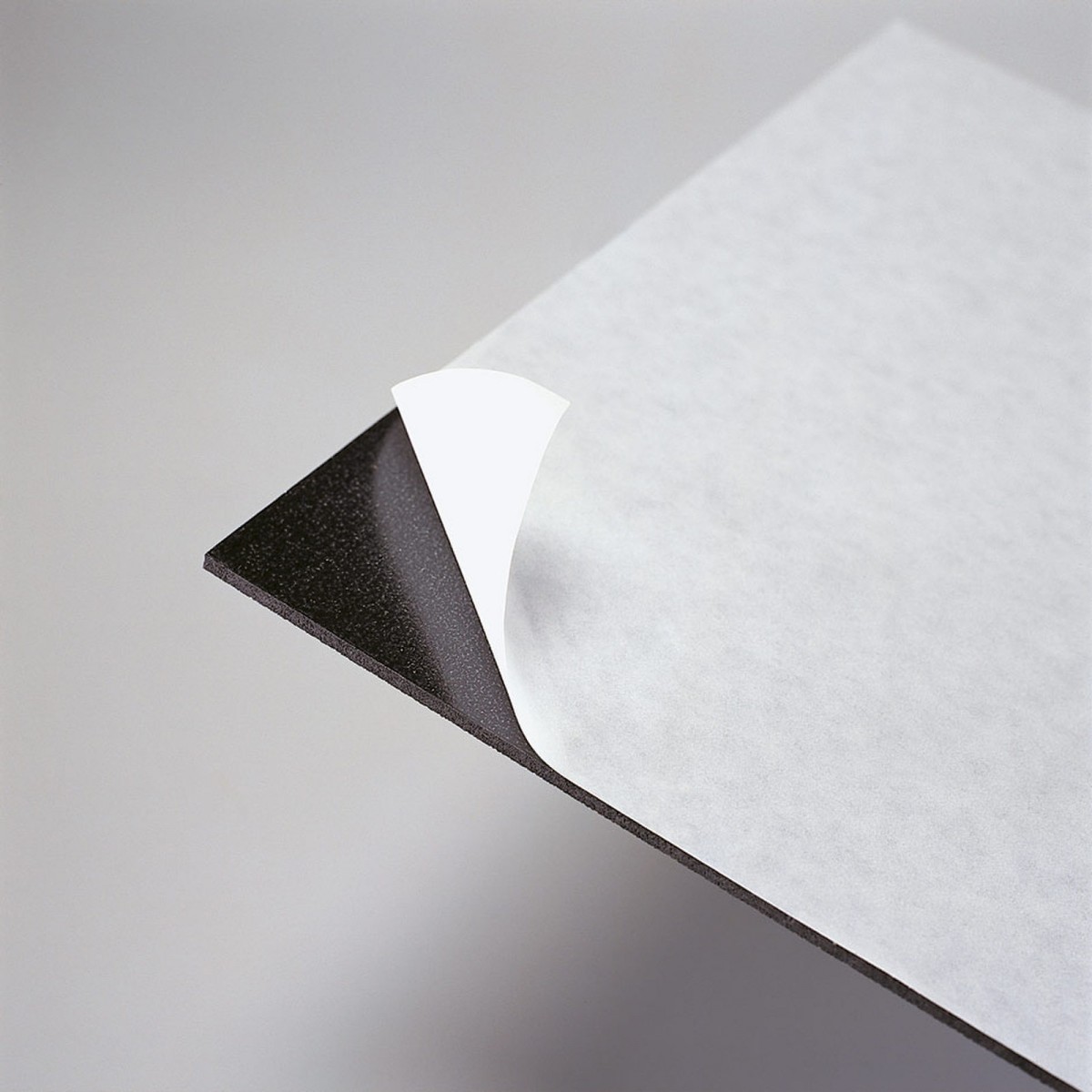

- mounting film for photos, inkjet- and digital prints on several surfaces such as hardfoam (e.g. Kapa. Gatorfoam), smooth PVCsurfaces, polystyrene®, polycarbonate, chipboard laminated, aluminium, etc.
- in furniture construction to laminate Resopal panels on covers and base cabinets
- universally applicable for indoor and outdoor use

Advantages / Special Features

- very thin
- no tearing up when sawing, cutting or removing the backing
- PAT-certification in accordance with ISO 18916 Rochester Institute of Technology, NY, USA

Durability:

Indoor: excellent optical characteristics up to 8 years
Outdoor: excellent optical characteristics up to 5 years
All tests conducted under controlled climatic conditions; 23/50-2, DIN 50014

Technical Data

Adhesive

Adhesive type:polyacrylate dispersion
pH-value: approx. 7,0
shear strength: [min] 500 g: > 5000 1000 g: 600 – 1500 AFERA 4012
Adhesive strength: [N/25 mm] 10 min: > 3,7 24h: > 5,2 AFERA 4001

Masking

Type: on either side siliconised Glassine paper, white
Thickness: [μm] 75± 5 approx. 3 mil
Weight: [g/m2] 93± 5
Removal force: [mN/cm] 20± 8 /speed 300 mm/min

Others

Storage conditions: 18° - 25°C/ 64 - 77°F; 40 bis 65% relative Luftfeuchtigkeit / relative humidity
Shelf Life: [Years] 4
indoor conditions for processing: 5 - 40°C/ 41- 104°F
